  The NUX B-2 PLUS is a pocket-size 2.4GHz wireless system that offers guitar players an easy solution to go wireless. Step on the latest NUX wireless transmission algorithm, B-2 PLUS secures a better connection in a noisy RF environment. With the newly-added auto-off function, you'll never have to worry about leaving the system on and draining out the batteries.

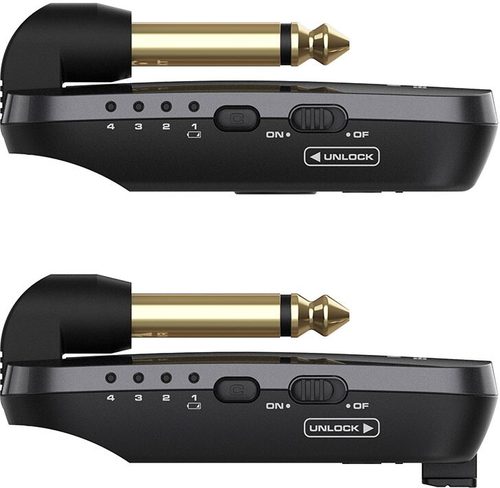

  NUX B-2 PLUS

  NUX B-2 PLUS offers 32bit/44.1KHz high definition audio quality and has a comparable operating range of 60 feet(line-of-site) with less than 5ms of latency. You can hardly find anything better within the same price range.

  HD Audio Quality,

  Ultra-low Latency & Comparable Operating Range.

  Products utilizing the 2.4GHz frequency band is everywhere nowadays; it's critical to find a way that can avoid most unwanted interference. Instead of increase the transmit power, we decided to narrow down the bandwidth to 2Mb so that B-2 PLUS can find the most available band. It's like driving a Motorcycle through a crowded highway.

  Improved Connection Stability

  Plug the transmitter into your guitar, plug the receiver into your amplifier or effect pedal; turn on both the transmitter and the receiver, and you're good to go. You can also take advantage of its four optional channels when gigging with your friends. Up to four B-2 PLUS can be used at the same time in one space.

  Plug-and-Play Operation, 4 Optional Channels

  B-2 Plus is designed to be compatible with the most popular guitars. You can configure the transmitter plug in two ways: facing downward to fit into the recessed top mounted inputs like Stratocasters* or facing other directions required for non-recessed inputs like the classic Les Paul* style.

  Guitar Friendly, Smart Design

  Buckle Design, Easy to Take and Keep

  Tongue-and-groove buckle clasp design to help avoiding losing the transmitter / receiver.

  Just buckle them together when you are not playing the guitar.

  The revolution in consumer 2.4GHz guitar wireless systems.

  To make guitarists get fun and easy to use wireless without WiFi interference, we use competitive components from Taiwan to make B-2Plus more affordable and even better!

  Why do we revolute B-2 to B-2 PLUS?

  Narrower bandwidth (2Mb only) provides better anti-interference ability.

  Lower power consumption, longer battery time. (7hrs working per charge.)

  Auto Off: The TX will turn off automatically since there is no input signal for 10 minutes, then the RX will also turn off after another 10 minutes.

  Specifications

  Operating Frequency Band

  2.4 GHz

  Audio Quality

  32-bit / 44.1 kHz

  Operation Range

  Up to 15 meters / 60 feet line-of-sight (environment-dependent)

  Frequency Response

  20 Hz – 20 kHz

  Latency

  Less than 5ms

  THD+ Noise

  Less than 0.05% 1kHz @-10dbFS

  Auto-Off Mode

  After 10 minutes without operation

  Built-in Battery Capacity

  3.7V/750mA (Transmitter&Receiver)

  Battery Life

  Up to 7 hours of playing time

  Dimensions

  73(L) x 40(W) x 55(H) mm

  Weight

  57g
