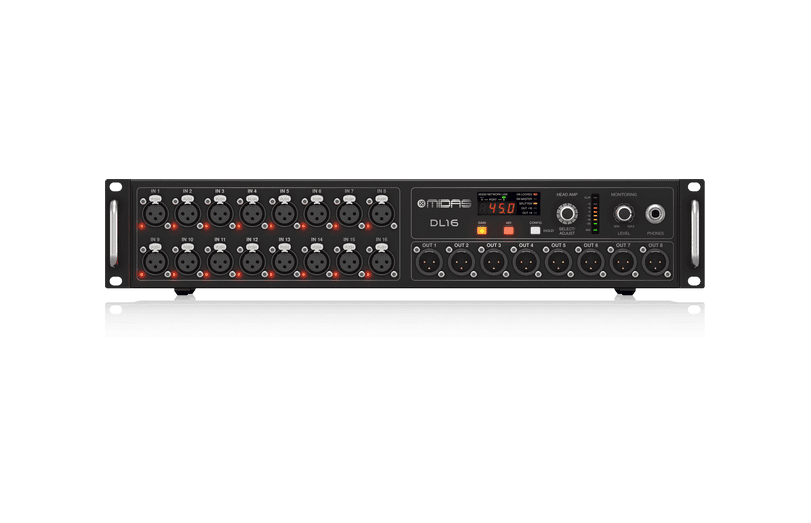

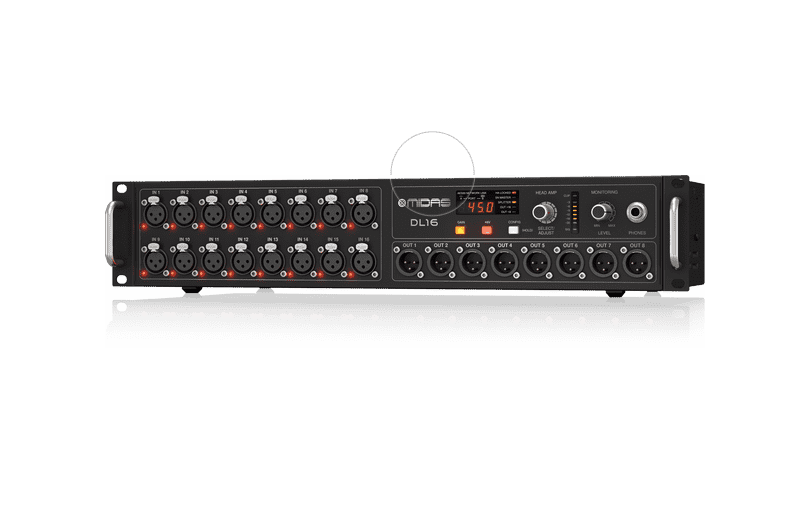

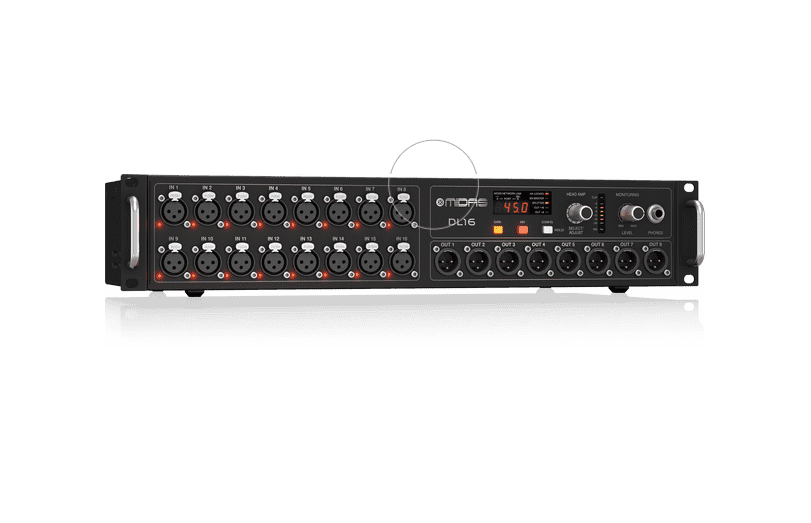

16 Input, 8 Output Stage Box with 16 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces

• 16 award-winning Midas PRO microphone preamplifiers with switchable 48 V phantom power

• 8 electronically balanced low impedance line level outputs

• ULTRANET personal monitoring system connectivity for in-ear applications

• Digital audio and control connectivity for Turbosound speaker systems with ULTRANET networking capability

• Dual AES50 SuperMAC ports for cascading additional DL16 stageboxes—no merger or router required

• Dual ADAT outputs providing 16-channel digital output on two optical TOSLINK* connectors

• Remote operation via shielded CAT5e cable up to 330 ft / 100 m length

• All settings programmable from front panel controls or console

• Status indicator LEDs on front panel

• Headphones output assignable to any of the inputs or outputs for on-stage monitoring

• MIDI In/Out for bidirectional communication between Midas M32 Series console and on-stage MIDI devices

• Features Neutrik etherCON* AES50 and ULTRANET network ports

• Rugged 2U rackmount chassis for durability in portable applications

• Auto-ranging universal switch-mode power supply
